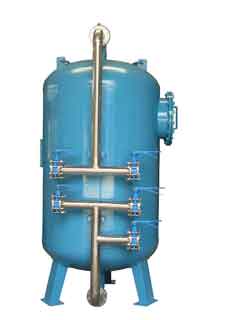

Ultra Media Filter:
Ultra Media Filtration is a path breaking filtration system as it eliminates use of sand or quartz. Instead, Ultra Media has pure crushed glass which has the right metal oxides to make it self-sterilizing. The media is activated to create a mesoporous structure with a large catalytic surface area. With ideal hydraulic characteristics and very high bio-resistivity, Ultra Media is a unique solution to many problems associated with water quality as well as conventional filtration systems.
Salient features of Ultra Media Filters are:
Crystal clear water
30% more organics removed as compared to sand filtration
95% filtration efficiency down to 4 microns
Bio resistant – no bio-film means no home for bacteria, viruses and other pathogens
Some of the applications for Ultra Media Filters are:
Pretreatment of Demineralization plant, Reverse Osmosis plant, Ultrafiltration plant & Softening Plant
Pharmaceutical industry
Breweries
Hospitals
Drinking Water Plants
Textile industry
Rice Mills
Solvent Extraction Vegetable oil refinery
Steel plant
Food industry
Explosive industry
Commercial complex
Sewage Treatment Plant (STP)
Technical specification:-
Outlet parameters:
Total Suspended Solids <2 ppm
Material of Construction:
Fiber Glass Reinforced Plastic (FRP)
Mild Steel rubber lined (MSRL)
Mild Steel Epoxy Painted (MSEP)
Flow Rate:
1 M3/hour – 150 M3/hour
