Batch Printing Machine (7900)
Key Benefits
• Automatic code setup features built-in - for quicker, error-free coding.
• Lowest cost of ownership, with long service intervals of up to 18 months or 9000 hours.
• Prints up to 5 lines of text, graphics, logos and Data Matrix 2D codes.
• Simple remote printer monitoring and control with Linx Insight remote web interface, for mistake-free coding and marking.
• Fast mistake proof refills with the SureFill® system.
• Linx’s unique FullFlush™ automatic printhead cleaning system ensures trouble-free starts and stops.
LINX 7900

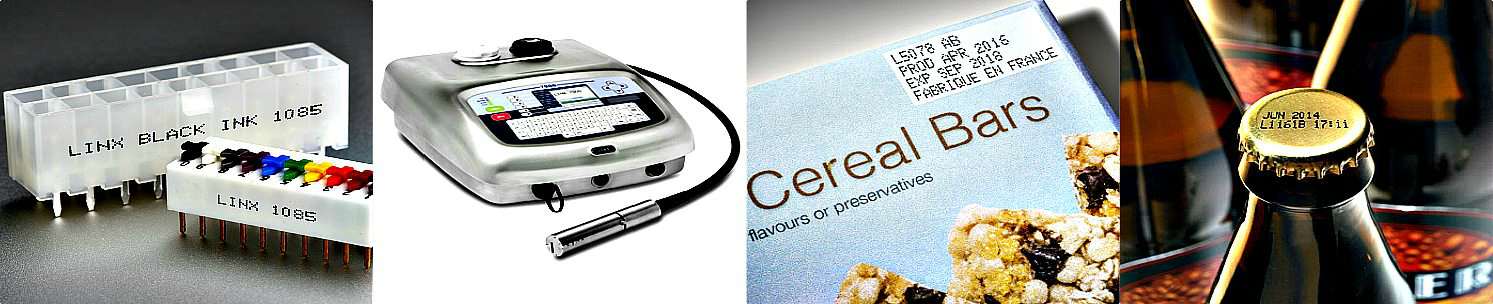

The Linx 7900 industrial continuous ink jet printer for coding and marking comes with everything you expect as standard. Reduce code errors and increase your productivity, with a range of automated features.
QuickSwitch® Plus
• Automated code setup using a barcode scanner, or data from a PC or PLC.
• Automatically sets print parameters such as print orientation, height and width, and position on pack.
• Sets date offset.
• Reduce your coding errors and speed up product changeovers
PrintSync® automated print format selection
• Automatically selects the best message type according to the line speed – for optimum print quality
• Simplifies code setup.
Print History log
• Records number of codes printed and stoppages.
• Accurate record of line output – no more manual logging.
• Measure line performance against your targets; accurately meet customer order volumes.
• Up to 400 separate print sessions can be logged.
Offering a coding solution with up to 3 lines of text, graphics and logos as standard, with up to 5 lines available if required, the Linx 7900 represents an advanced continuous ink jet printer.
Linx Insight® software also helps you to take more control of your production line. With Insight® you can download or upload messages from a PC to the Linx 7900, and even monitor it from you smart phone, all you need is internet access and an Ethernet connection to your printer. And Linx Insight is included with the printer at no extra cost.
Simple printer control
• Remote printer monitor and control with Linx Insight.
• Quick code setup using QuickSwitch Plus software and PrintSync automatic print format selection.
• Easy transfer of messages between printers with a standard USB port or using Linx Insight.
Lowest running costs
• Long service intervals of up to 9000 hours or 18 months
• 30 month warranty
• Minimal parts changed at scheduled services – no expensive ink system assemblies to replace, so no hidden costs
Increased production uptime
• Automatic and thorough cleaning of the printhead and conduit at every shutdown. Linx's unique FullFlush® system ensures reliable startups.
• Fast mistake proof refills with the SureFill® system
Extra features – as standard
• Ethernet port.
• 3 line printing.
• Data Matrix 2D codes.
• RS232 connectivity.
• External single stage alarm output.
• Connectivity for product detectors and shaft encoders.
TECHNICAL SPECIFICATION
Printing capability
• Up to 5 lines of text, graphics, logos, barcodes.
• 3 lines as standard.
• Maximum print speed of 8.41m/s (for single line of code).
• Print heights from 1.1mm to 13.8mm.
• Data Matrix 2D codes.
• Dynamic reverse/invert printing for traversing lines.
Programming facilities
• Linx Insight remote printer control and status view.
• Simple menu-driven WYSIWYG message creation and editing.
• QuickSwitch® Plus message selection and editing using a barcode scanner.
• PrintSync automated print format selection.
• Print History log.
• USB port for copy and back-up of message and printer settings, and for easy transfer of messages between printers.
Physical characteristics
• Curved stainless steel casing with minimal dirt traps.
• IP55 (washdown) as standard and IP65 (dust proof) as optional.
• Weighs only 21kg.
• No factory air required.
RELATED ACCESSORIES
Linx accessories are designed to enable correct integration of the Linx 7900 with your production line. For unusual or challenging set-ups, our customer engineering department can build customized solutions to suit every application.
