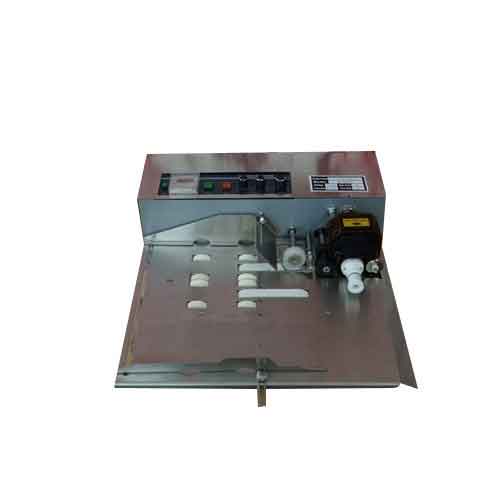

High Speed Batch Coding Machine:

We are manufacturer, exporter and supplier of Batch Coding Machine that are a compact online automatic ink coder, which are designed to print details like price, batch number, manufacturing date, expiry date etc. Moreover, the batch coders are suitably modified to include personalized details, certain types of cases and other specifications. The easily removable ink system is totally enclosed to ensure minimum ink evaporation and dust contamination. Speed of coder is synchronized by the parent machine motion.

Features :

Requires minimum energy for the smooth and efficient operation.

Optimum operational efficiency and longer operational life.

Designed with high precision and are easy to handle.

Rugged design with user friendly operation.

Low maintenance

Specifications :

Product Name	Handy Coder
Specifications	Value
Model	IM-380
Voltage(V/Hz)	220/50
Power(W)	180
Ink roller size(mm)	35 * 32
Printing Speed(pcs/min)	100
Object size(mm)	L:50-500 W:30~300
Type Number	T Type(10.5PT):11 Lines, Max.10 Types/Line, R Type(10.5PT):8 Lines, Max.8 Types/Line
Printing Type	Solid Ink coding
Type size (mm)	3 * 3(10.5PT)
Dimension(LXWXH)(mm)	440 * 465 * 300
Net weight(kg)	26
