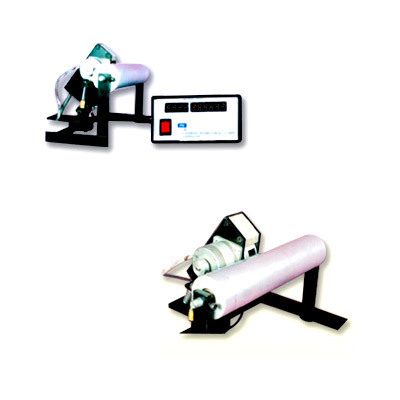

Electronic Rotary Contact Coder Machine:

3535 ERCC PLC based fully automatic, ELECTRONIC ROTARY CONTACT CODER is suitable for registered printing & coding statutory information on various packings

Features:

The EMCC is truly operator friendly coder. It comes with PLC which provides guidance for Quick operation.

This is portable compact & easy to install. It has printing capabilities of 1 to 4 lines of variable information. (i.e. max size 35 mm x 35 mm)

Specifications :

Product Name	ERCC Printer
Specifications	Value
Model	ERCC
Printing Method	Ink transfer by flexor type grooved/flat stereos, 3 mm size or any other required size. Grooved stereos are interlocking type & can be changed on demand.
Printing Area	35 mm width 180 mm (max) vertical
Ink Cartridge	high quality special ink cartridge is used to release the appropriate amount of ink for each fine impression which is easy to mount & long lasting in normal use.
Ink Charge	5-10 ml per charge. Give"s up to 30,000 impressions per charge depending on size & speed of marking.
Motor	Hybrid type DC stepper motor
Supply Voltage	230v AC+-10%,50 HZ
Proximity Switch	Npn No Type 10-30 Vdc (Zero Marker Input)
Eye Marker	Npn No Type 10-30 Vdc (Print Input Signal)
Weight	Printing Head 2 kg,PLC-3 kg
